In addition to fans, BarkerBille also offers a wide range of accessories for use with wind turbines, which, like our other products, have high quality and excellent performance.

Check the door
Check the door is set on the fan casing, from the motor end, its position is displayed in the form of a clock pointer, regardless of the direction of rotation of the fan.

Autolubrication
Fan can be equipped with automatic lubrication system, directly installed on the fan bearing housing or install a lubricating oil pump to achieve multi-point lubrication, oil pump supporting alarm system, alarm when oil shortage – need to know more information, please contact BarkerBille.

Fan base
The base of the fan itself is part of the fan. We also offer a separate fan base. If the fan is installed in a special place such as a steel deck, a special base is required. Our base is a cross-sectional structure.

Water outlet
The fan can be equipped with a water outlet to drain the moisture in the fan casing.

CIP Cleaning System
BarkerBille offers different CIP cleaning customization solutions to clean the fan impeller and the inside of the housing. CIP cleaning solutions include custom CIP nozzles, water outlets, inspection doors and special shaft seals, all of which are FDA-approved.

Cooling Plate
Fan temperature reached or exceeded 300 & deg; C, the fan design is different, the fan can be equipped with a cooling plate.

Flange
BarkerBille provides a spare flange for the air inlet or outlet for soft connection.

Soft Connect
Fan air inlet and outlet can be equipped with soft connection. Soft connections reduce the transmission of noise and vibration while ensuring that the fan does not withstand the pressure from the pipe. If the fan uses a cushion, a soft connection is used at both the air inlet and the air outlet of the fan.

If the fan is used to treat the exhaust, temperature and pressure are important determinants when choosing a soft connection. BarkerBille offers a variety of different soft connections for customers to choose from.

Traffic Adjustment
To understand BarkerBille's airflow adjustment options, click on the damper, damper, and frequency converter.

Baffle
The deflector can be used to protect the soft connection. For the exhaust fan, when the gas flowing through the fan is high, the wind speed is higher than 20 m/s and the pressure exceeds 10,000 Pa, Supporting baffles.

fan transfer interface
BarkerBille offers standard fan transfer interfaces or is customized to customer requirements.

Shaft seal
Fan shaft seals come in many different forms. For example: double seal ring, labyrinth shaft seal, impeller rear plate seal, reverse seal, etc. If you have special requirements for shaft seals, please contact BarkerBille.

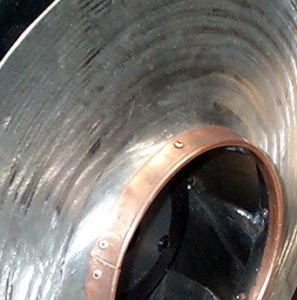

Fire Flower Design
We provide a fan designed with fire protection, and a fire-resistant copper ring is installed on the air inlet side of the impeller to prevent static electricity.

Speed ​​Monitoring
BarkerBille offers a variety of speed monitoring solutions.

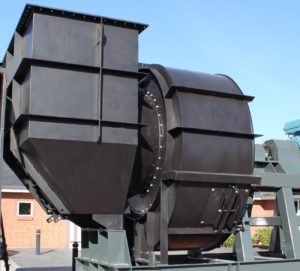

Into the bellows
In order to reduce the pressure loss of the incoming air, BarkerBille customizes the air inlet box for the customer, and the air inlet box has a baffle to achieve steady flow.

Temperature Monitoring
BarkerBille offers a variety of temperature monitoring options.

Shock Pad
The cushion is an optional device that reduces the vibration and noise of the fan itself and the external shock absorber. The cushion is mounted directly on the fan base or the like.

Vibration Monitoring
BarkerBille offers a variety of vibration monitoring solutions.

Shell internal wear protection layer
When the material used or transported causes wear on the inside of the fan casing, an anti-wear protective layer can be added to the inside of the casing. The wear layer can be replaced if needed.
