Features and uses:
Product Overview
JL/JH series vortex pumps are ultra-pure varieties developed for the food, pharmaceutical, and semiconductor cleaning industries. The pump body is completely precision machined with stainless steel and precision grinding and polishing to meet the ultra-pure liquid supply requirements.
Product Features
● Simple structure without hygienic corners
The structure is simple, the design completely eliminates the dead corners, and avoids the space for microbial breeding;
(There is no possibility that the corrugated pump or diaphragm pump has too much contact area and the risk of breeding and residual microorganisms is high)
● Thorough surface treatment
Precision processing of wetted parts, supplemented by special grinding and surface treatment, can achieve ultra-pure use requirements;
●Long-term stability performance
Because there are no bellows, diaphragms or valves that reciprocate the bellows pump or diaphragm pump, it not only ensures long-term stability and service life, but also saves maintenance costs ;
●Excellent heat resistance and durability
The parts of the pump are made of SUS316 stainless steel, and the mechanical seal is made of silicon carbide and heat-resistant polytetrafluoroethylene material. The resin pump can't correspond to 100°C or above. High temperature conditions can also be used normally;
Product Usage
General Industrial Cleaning Equipment
Pure water ultrapure water delivery equipment
Food, liquid delivery equipment and medical equipment
Microelectronics components, printed circuit board cleaning equipment

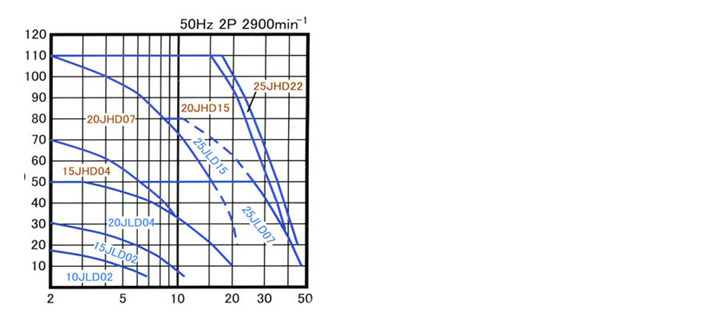

Performance curve:
