Apps
Process Industry
Machinery and Equipment Manufacturing

Features
TÜV certified SIL type products for protection equipment developed according to IEC 61508 standard (optional)
Operating to SIL2 (single meter) and SIL3 (redundant configuration) in security applications
Support for almost all hardware and software tools for configuration
can connect 1 or 2 sensors
- Thermal Resistance Sensor
- Thermocouple, mV sensor
- Potentiometer
Signal transmission in accordance with NAMUR NE43 standard, sensor fault detection in line with NE89 standard, EMC in line with NE21 standard

Description
This series of temperature transmitters are highly accurate, electrically isolated, and have excellent immunity to electromagnetic interference (EMI), and are commonly used in the process industry. The T32 temperature transmitter supports the HART® protocol, so it can be configured with a variety of open source configuration tools. Different types of sensors are available according to user requirements, such as DIN EN 60751, JIS C1606, DIN 43760, IEC 60584 or DIN 43710. In addition, the user can also customize the characteristics of the sensor by entering values ​​(user-definable linearity).
After a redundant configuration of the sensor (dual sensor), once a sensor fails, the transmitter automatically switches to another sensor that is working properly.
In addition, sensor drift detection can be activated through redundant configurations. When the temperature deviation between sensor 1 and sensor 2 exceeds the user setting, the transmitter will send a fault signal.
T32 transmitter also has many high-end management functions such as sensor line resistance detection, NAMUR NE89-compliant sensor fault detection and measurement range monitoring. Moreover, this series of transmitters can perform comprehensive self-monitoring on a regular basis.
Head Mounted Transmitter is larger in size and can be mounted to a Type B DIN connector with a larger mounting space, such as the Weika BSS.

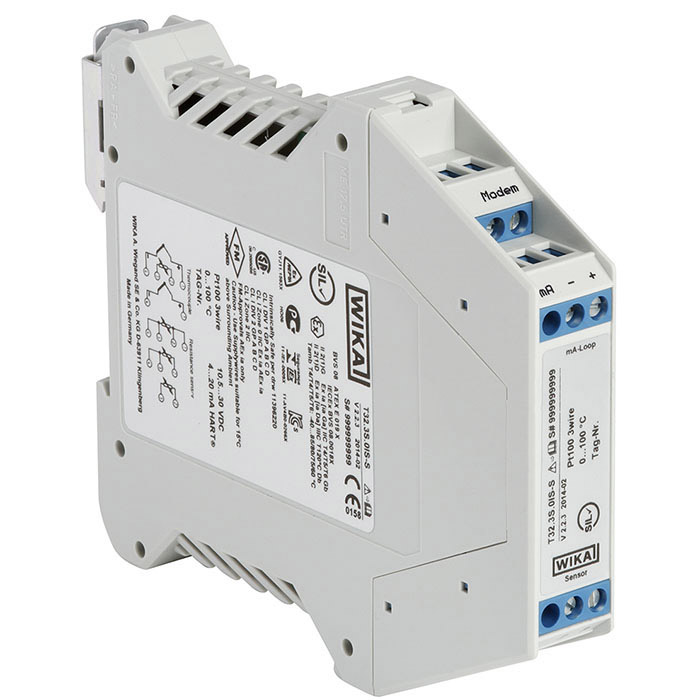

Rail Mounting Transmitter can be installed to all standard rail systems in accordance with IEC 60715. The transmitter is delivered as standard, and we can also configure the transmitter to the specified parameters according to customer requirements.
