Apps
Machinery, Equipment, and Container Construction
Promotion technology, hydraulic
Heating and cooling circuit, air conditioning technology

Features
The measurement range is -50 ... +200 °C (-58 ... +392 °F)
Electrical connection through plug
Output signal 4 … 20 mA, 0 … 10 V or 0.5 … 4.5 V
Factory configuration
Measuring core replaceable

Description

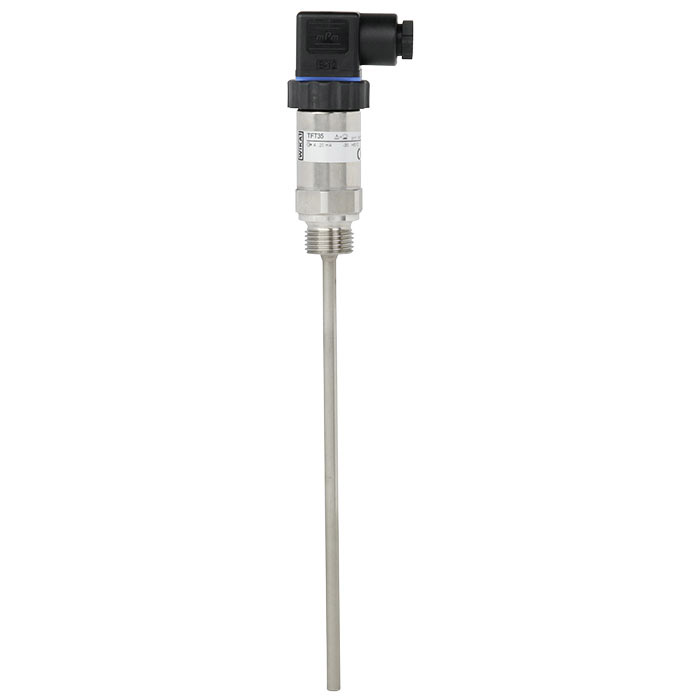

TFT35 Compact Temperature Transmitter is used to measure the temperature of liquid and gaseous media in the range of -50 ... +200 °C (-58 ... +392 °F).
can be used for pressure conditions up to 10 MPa. All electrical components are splash-proof and shock-resistant.

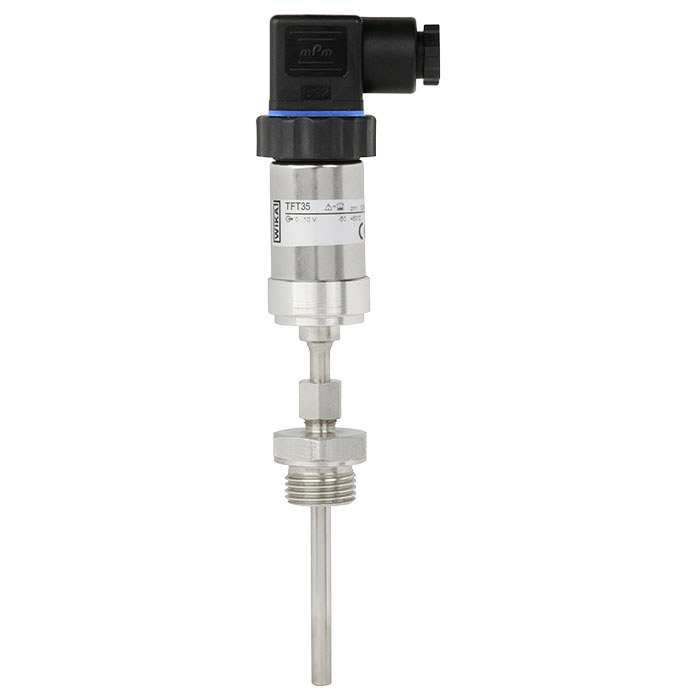

The integrated jacket with fixed threaded joints or adjustable movable ferrules can be installed directly into the process. All wetted parts and cabinets are made of stainless steel.
The cabinet and the replaceable measuring core are tightened by the knurled nut. It is therefore possible to replace the measuring core without removing the meter from the process.
The integrated connector ensures easy installation of the transmitter.
Integrated electronics converts the resistance signal of a component as a function of temperature into a linear unit signal. For signal output, 4 ... 20 mA, 0 ... 10 V and 0.5 ... 4.5 V proportional voltage.
