Application of resistance thermometer
Machinery, equipment and tank manufacturing
Promotion technology, hydraulic system
General Applications

Functional characteristics of resistance thermometer
Temperature range: -50 ° C ~ +250 ° C, accuracy class according to DIN EN 60751
TR30-W: integrated transmitter and can be programmed and calibrated by software
Electrical connection form: round connector or DIN L connector
Process connection and probe material is stainless steel
Explosion-proof Ex i

Description of resistance thermometer
This series of resistance thermometers are used to measure gas and liquid media.
The maximum pressure measured is 4 MPa (40 MPa for special designs, depending on the length of the inserted diameter). All electrical components are waterproof and shock resistant. The corresponding probe insertion depth, process connection and sensing elements can be selected by ordering information text for different applications.

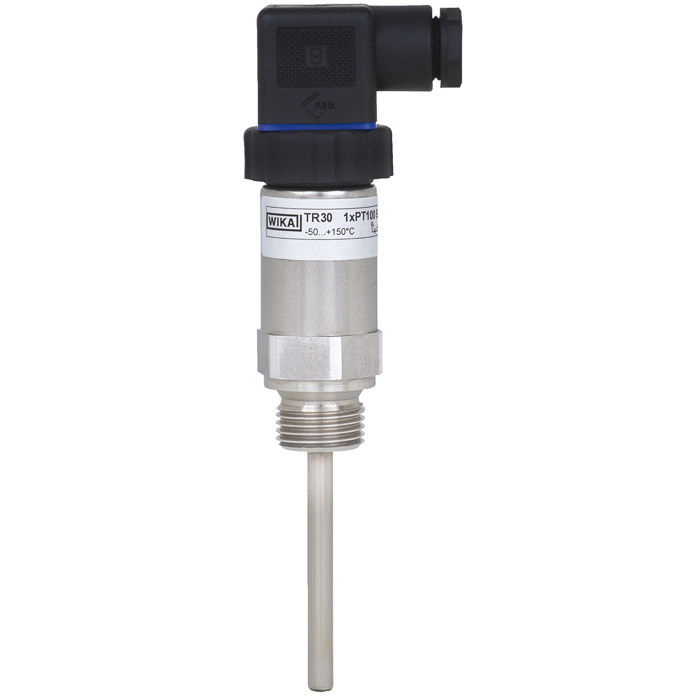

TR30 resistance thermometer with integral welded sheath with a direct-installed threaded process connection. A form without a process connection can also be implemented. Electrical connections can be made using standard DIN L plugs or M12X1 wires.
Output signal Pt100
TR30-P type resistance thermometer provides direct output of Pt100 signal. You can also choose intrinsically safe.
Output signal 4 ... 20 mA
TR30-W resistance thermometer integrates an output signal 4... 20 mA transmitter, which can be programmed by software. It ensures that the measured temperature signal is worthy of simple and reliable transmission. You can also choose the TR30-W intrinsically safe type.
