If the fire protection system uses additional detection equipment, it is called a pre-action sprinkler system.
Size: 1 1⁄2"-8"
Assembly type: flange x flange, flange x groove, groove x groove
Assembly direction: horizontal and vertical
Working pressure: 175-250 psi
Certification: FM, UL, ULC
It can be divided into the following two locking systems
A-single interlock pre-action sprinkler system
A.1-wet pilot activation
A.2-dry pilot activation
A.3-Electrical activation
B-Double interlock pre-action sprinkler system
B.1-Electrical – Pneumatic activation
B.2-Electric – Electric activation

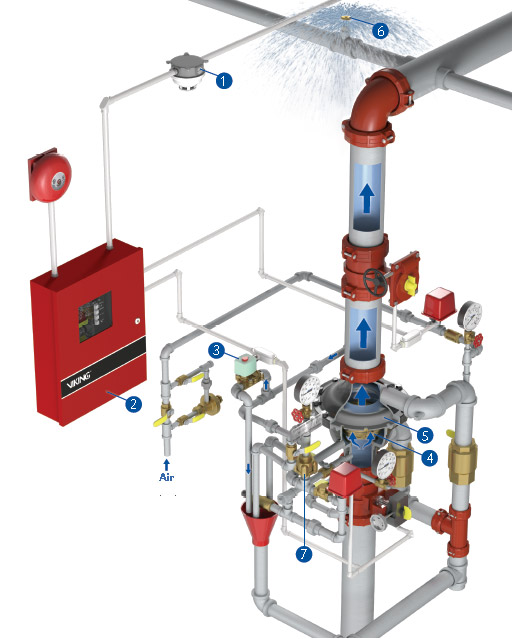

When a fire occurs, the temperature sensing and smoke detector installed in the protection zone (1) first emits a fire alarm signal, and the control panel (2) displays the alarm signal as an acousto-optic signal and transmits it to the solenoid valve (3) to open it. The deluge valve (4) is then activated to allow water to enter the sprinkler line (6) through the corresponding check valve (5) and complete the water filling process in a short period of time to convert the system into a wet system. At the same time, the pressure relief valve (7) causes the water to continue to flow and ensures the opening of the deluge valve.
working principle
In a pilot dry or wet sprinkler system, if a sprinkler blast or detector (smoke, temperature sensing, electrical spray switch) detects a fire alarm signal, the water flow begins. In addition, rapid detection can be performed by an additional detection system such as a pilot sprinkler.
Application purpose
Prevent the danger of fire sprinklers or sprinklers.
Application range
- Archives
-computer room
-library
-museum
B-Double interlock pre-action sprinkler system
B.1-Electrical – Pneumatic activation (sprinkler + detector)
B.2-Electric – Electric activation (detector + pressure reducer)
Electric-pneumatic double interlock preaction system

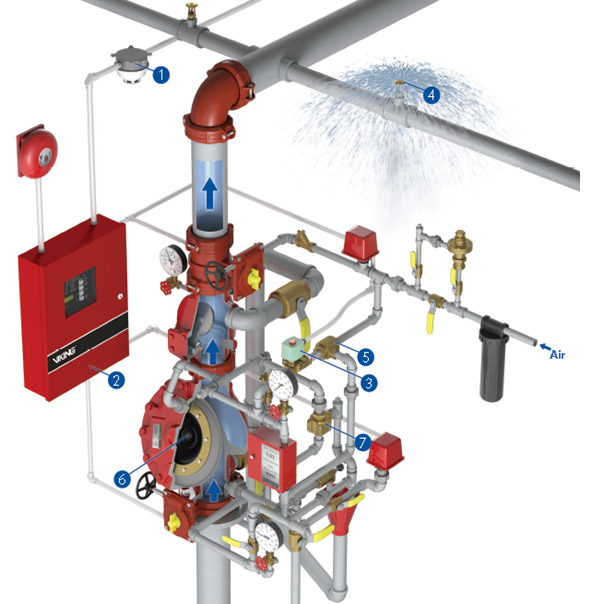

When a fire occurs, the detector (1) detects the fire alarm signal and transmits it to the control panel (2) for sound and light display, so that the solenoid valve (3) is turned on. The deluge valve (6) will not open until the sprinkler (4) bursts. This is because the sprinkler blasting causes the system pressure to drop and the pneumatic actuator (5) to start. At the same time, the pressure relief valve (7) causes the water to continue to flow and ensures the opening of the deluge valve.
working principle
After the sprinkler is blasted, the detection system (sprinkler + detector, detector + pressure switch) transmits the detected fire alarm signal to the control panel. The solenoid valve opens and the water starts to start.
Application purpose
Prevent water flow risks in highly sensitive areas.
Application range
- Archives
-computer room
-library
-museum
- cold storage
-Printing house
