The standard response sprinkler design is certified. Can be applied to different ranges. 5mm bulb glass and solder are resistant to high temperatures.

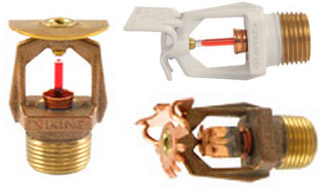

	A– Standard response sprinkler Upright type K factor: 80 (5.6) Temperature sensitivity: 5 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof or floor Certification: UL		Drooping type K factor: 80 (5.6) Temperature sensitivity: 5 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome, white polyester Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof or floor Certification: UL

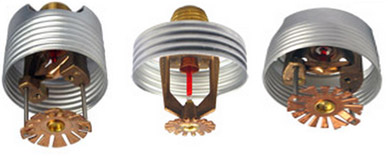

	Concealed spray K factor: 40.3 (2.8), 57 (4.2), 80 (5.6), 115 (8.0) Temperature sensitivity: 5 mm cam bulb Connection diameter: 1⁄2"npt - 3⁄4" npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C, 141 °C, 182 °C Surface: brass, chrome, white and black Pressure rating: 175~250psi Hazard level: low, medium and high risk Assembly type: parallel to the roof Certification: FM, UL, ULC, VdS, CE		Embedding type K factor: 80 (5.6) Temperature sensitivity: welding - SR Connection diameter: 1⁄2” npt Temperature: 74 °C, 104 °C Surface: chrome, white Pressure rating: 175psi Hazard level: low risk Assembly type: parallel to the floor Certification: FM, UL, ULC, VdS, CE

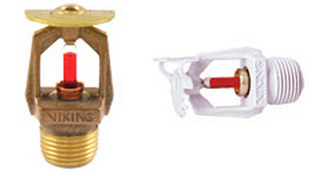

	Side wall type K factor: 80 (5.6) Temperature sensitivity: 5 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome, white polyester Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof Certification: UL		B – fast response sprinkler Upright type K factor: 80 (5.6) Temperature sensitivity: 3 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof or floor Certification: UL

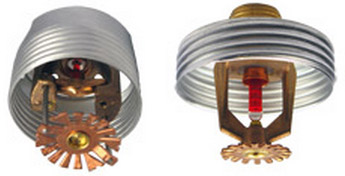

	Drooping type K factor: 80 (5.6) Temperature sensitivity: 3 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome, white polyester Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof or floor Certification: UL		Concealed spray K factor: 40.3 (2.8), 57 (4.2), 80 (5.6), 115 (8.0), 160 (11.2) Temperature sensitivity: 3 mm glass bulb / soldering Connection diameter: 1⁄2"npt - 3⁄4" npt Temperature: 68 °C, 74 °C, 93 °C, 96 °C Surface: brass Cover: brass, chrome, white and black Pressure rating: 175~250psi Hazard level: low risk, intermediate risk Assembly type: parallel to the roof Certification: FM, UL, ULC, VdS, CE
	Embedding type K factor: 80 (5.6) Temperature sensitivity: welding - QR Connection diameter: 1⁄2” npt Temperature: 74 °C Surface: chrome, white Pressure rating: 175psi Hazard level: low risk Assembly type: parallel to the roof Certification: FM, UL, ULC, VdS, CE		Side wall type K factor: 80 (5.6) Temperature sensitivity: 3 mm glass bulb Connection diameter: 1⁄2” npt Temperature: 57 °C, 68 °C, 79 °C, 93 °C Surface: brass, chrome, white polyester Pressure rating: 7~175psi Hazard level: low, medium and high risk Assembly type: parallel to the roof Certification: UL
	Concealed side wall K factor: 80 (5.6) Temperature sensitivity: welding Connection diameter: 1⁄2” npt Temperature: 74 ° C, 104 ° C Surface: brass Cover: brass, chrome, white and black Pressure rating: 175psi Hazard level: low risk Spray type: vertical Certification: UL, ULC

Product manual

        Click here to download Standard Responsive Sprinkler Manual

        Download Brochure (PDF)
