Warehouse sprinklers are designed for special applications such as high level water storage systems. This type of sprinkler provides more water under low pressure. If the user has the correct pressure adjustment for the ESFR sprinkler, there is no need to use any other sprinklers between the ladders.

        This type of sprinkler is designed to prevent the ladder from breaking. When using, users should pay attention to their characteristics. The waterproof cover is very important for heat detection. If the water hood is not used in the sprinkler system, the sprinkler will not reach the required heat and will not start.

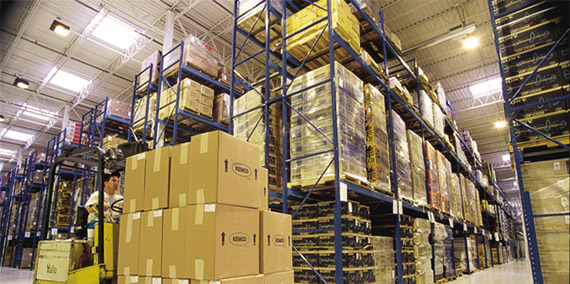

Application range

        warehouse

        the mall

        Stack storage

        Logistics

	ESFR (early suppression fast response) sprinkler ESFR has three differences compared to other sprinklers: Speed - ESFR sprinklers have twice the heat detection and start-up time than other sprinklers; Spray volume - other sprinklers can spray water 25-60 gpm, while ESFR can spray water 100 gpm; Water Drop Size - ESFR has large water droplets and flow rates compared to other sprinklers.		Upright type Connection diameter: 3⁄4" npt Assembly type: upright type K factor: 14 (200) Certification: FM, UL, ULC, LPCB, VdS Temperature: 74 ° C, 96 ° C Surface: brass Product Name: VK520 - ESFR (early suppression, fast response) in fire mode - Use solder to withstand heat - Protective shelf system - Suitable for racking systems - Can replace the drooping connection
	ESFR – K: 17 (242) sprinkler Connection diameter: 3⁄4" npt Assembly type: drooping type K factor: 16.8 (242) Certification: FM, UL, ULC, LPCB, VdS Temperature: 74 ° C, 96 ° C Surface: brass Product Name: VK503 - ESFR (early suppression, fast response) in fire mode - Use solder to withstand heat - Protective shelf system - Suitable for racking systems - ESFR K that can be used in place of low pressure: 14		ESFR – K: 22.4 (320) sprinkler Connection diameter: 1" npt Assembly type: drooping type K factor: 22.4 (320) Certification: FM, UL, ULC, LPCB, VdS Temperature: 74 ° C, 96 ° C Surface: brass Product Name: VK506 - ESFR (early suppression, fast response) in fire mode - Use solder to withstand heat - Protective shelf system - Suitable for racking systems - ESFR K that can be used in place of low pressure: 17
	ESFR – K:25 （363） 喷淋头 连接直径：1”npt 装配类型：下垂型 K因子：25 （363） 认证：FM, UL, ULC, LPCB, VdS 温度：74°C, 96°C 表面：黄铜 产品名称：VK510 - 消防模式下的ESFR（早期抑制、快速响应） - 使用焊料可耐强热 - 保护货架系统 - 适用于货架系统 - 可代替低压下工作的ESFR K:22		CMSA （控制模式特定应用）洒水喷头 高危环境® 大水滴 直立型洒水喷头 K:11.2 （160） 连接直径：½”npt – ¾”npt 装配类型：直立型 K因子：11.2 （160） 认证：FM, UL, ULC 温度：68°C, 93°C, 141°C 表面：黄铜 产品名称：VK540 -采用5 mm灯泡玻璃，耐高温。 -设计用于高危环境®大水滴型洒水喷头组A塑料消防喷淋管道。可保护高7.6 m和9.1 m的货架系统，而无需额外喷淋头。 -货架顶部的导流板和托盘间距必须至少为914 mm。
	Standard response CMSA sprinkler Sprinkler K:19.6 (282.6) Connection diameter: 1" npt Assembly type: drooping type K factor: 19.6 (282.6) Certification: FM, UL, ULC Temperature: 71 ° C, 96 ° C Surface: brass Product Name: VK592 - Use solder to withstand heat. - Designed for standard response CMSA sprinkler type sprinkler set A plastic fire sprinkler pipe. Protects rack systems up to 7.6 m and 9.1 m without the need for additional sprinklers. - The baffle and pallet spacing at the top of the rack must be at least 914 mm.		CMDA (Control Mode Density Zone) Sprinkler Upright sprinkler (storage density / area) K: 16.8 (242) Connection diameter: 3⁄4" npt Assembly type: upright type K factor: 16.8 (242) Certification: FM, UL, ULC Temperature: 68 ° C, 79 ° C, 93 ° C, 141 ° C Surface: brass Product Name: VK580 - 5 mm bulb glass for high temperature resistance; - With low pressure lines and low pressure pumps, it can be used in low pressure environments while saving some costs; - Designed for high storage systems; - Standard responsive sprinkler system.
	ELO sr upright/sagging sprinkler (Storage - Density / Area) K: 11.2 (160) Connection diameter: 3⁄4" npt Assembly type: upright type / drooping type K factor: 11.2 (160) Certification: FM, UL, ULC Temperature: 68 ° C, 79 ° C, 93 ° C, 141 ° C Surface: brass, chrome, black and white Product Name: VK530 / VK536 - 5 mm bulb glass for high temperature resistance; - standard responsive sprinklers; - With large spray aperture, designed for high capacity storage and manufacturing; - With low pressure pipeline and low pressure pump, it is suitable for low pressure environment while saving cost; - Can be used as a medium-sized sprinkler if used with a sprinkler cover.		ELO qr upright / drooping sprinkler (Storage - Density / Area) K: 11.2 (160) Connection diameter: 3⁄4" npt Assembly type: upright type / drooping type K factor: 11.2 (160) Certification: FM, UL, ULC Temperature: 68 ° C, 79 ° C, 93 ° C, 141 ° C Surface: brass, chrome, black and white Product Name: VK531-533 / VK377 - High temperature resistance with 3 mm bulb glass and solder; - a quick response sprinkler; - With large spray aperture, designed for high capacity storage and manufacturing; - With low pressure pipeline and low pressure pump, it is suitable for low pressure environment while saving cost; - Can be used as a medium-sized sprinkler if used with a sprinkler cover.
	EC storage (extended coverage) sprinkler Extended Cover Upright Sprinkler (Storage - Density / Zone) K: 25.2 (363) Connection diameter: 1⁄2" npt Assembly type: upright type K factor: 25.2 (363) Certification: FM, UL, ULC Temperature: 74 ° C, 101 ° C Surface: brass Product Name: VK595 - use solder to withstand strong heat; - Designed for high-risk warehouses and production; - The baffle and pallet spacing at the top of the rack must be at least 914 mm.

Product manual

        Click here to download Warehouse Sprinklers Brochure

        Download Brochure (PDF)
