Apps
Turn off and disconnect pressure gauges
Applicable to non-highly viscous or crystalline gas and liquid aggressive media, also suitable for corrosive environments
Process Industry: Oil and Gas, Petrochemical, Chemical, Power Generation, Water and Wastewater Treatment

Features
Low wear design, the spindle head in the bonnet is not rotatable
The valve handle has low torque and can run smoothly even under high pressure
Explosion-proof bonnet design enhances product safety
The seat leak rate test meets BS6755 / ISO 5208 Class A leak rate
Can be combined with valves and instruments (connections) according to customer requirements

Description

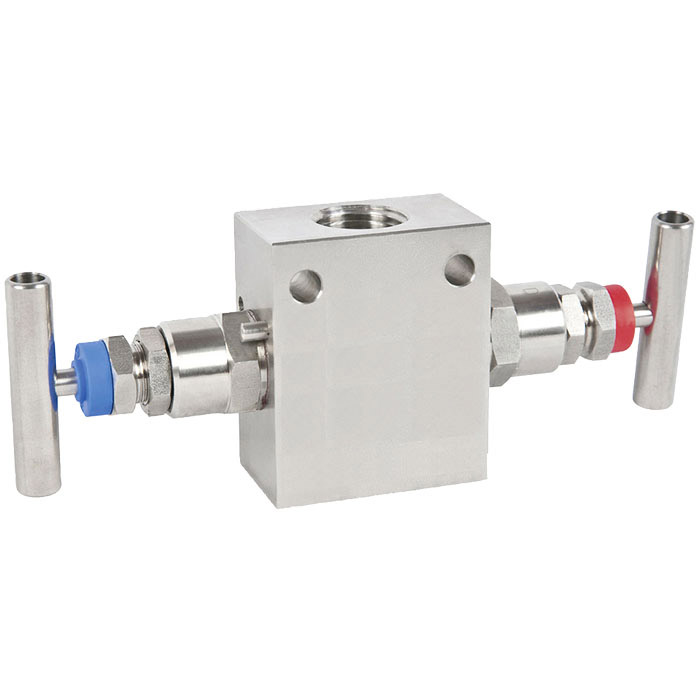

Blocking and draining instrumentation valves are standard when using dual valve sets. The blocking valve separates the process from a measuring instrument such as a pressure gauge, switch or transmitter. By closing the valve, the meter can be safely removed for recalibration or replacement of the meter. The drain valve safely drains instrument waste before disassembly or zero check.
The spindle head is not rotatable to reduce wear on the sealing element. This also significantly extends the life of the product, especially when it is frequently turned on and off.
Valves are designed with explosion protection to improve their work safety, especially under high pressure loads.
WIKA can perfectly fit valves and pressure gauges and incorporate this service and other accessories into a direct-install solution, also known as a connection. To ensure the performance of the entire system, leak testing is also performed when making connections.
