Temperature Monitoring and Electrical Load Control
General Process Instrumentation in Industrial Applications: Chemical, Petrochemical, Oil and Gas, Power Plant (including Nuclear Power), Water/Wastewater Treatment, Mining, etc.

Features
Electrical load does not require power
Setting range: -30 ... +70 to 0 ... 600 °C
Intrinsically Safe (optional)
1 or 2 independent switching values, single pole double throw (SPDT) or double pole double throw (DPDT), switching rating up to 20 A / AC 250 V
can be connected directly or through a capillary (up to 10m)

Description
This high quality pressure switch is designed for applications in confined spaces in hazardous environments. This type of pressure switch is not only of superior quality but also meets ISO 9001 product manufacturing standards for reliable monitoring. In production, the switch tracks the record at each step via quality management software and passes 100% of the test after the finished product.
To ensure that the operation is as flexible as possible, the pressure switch is equipped with a micro switch that can directly control electrical loads up to 20 A / AC 250V.
For applications that require smaller electrical contact ratings, such as PLC applications, microswitches with gold-plated electrical contacts and argon-filled gas can be used.
The measuring component of this product is a pneumatic system with a Bourdon tube, which can be set to a range of 0...600 °C.
Other components in the measurement system and spiral armor are also available in stainless steel.

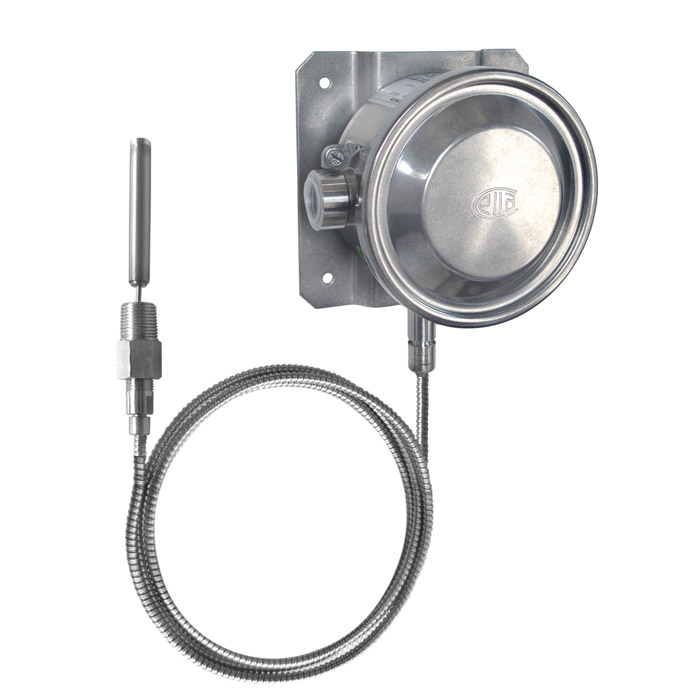

TWG type temperature switch is extremely rugged and maintains optimal operation performance even in a limited space (reproducibility is less than 0.5% of accuracy).
