Apps
Install directly into the measurement process
Machinery Manufacturing
Car
bearing
Pipe and container

Features
Sensor range: -40 ... +1,200 °C (-40 ... 2,192 °F)
Inline, or join through additional process connections
cable protection layer available in PVC, silicone, PTFE or fiberglass
High mechanical strength
Explosion-proof type

Description

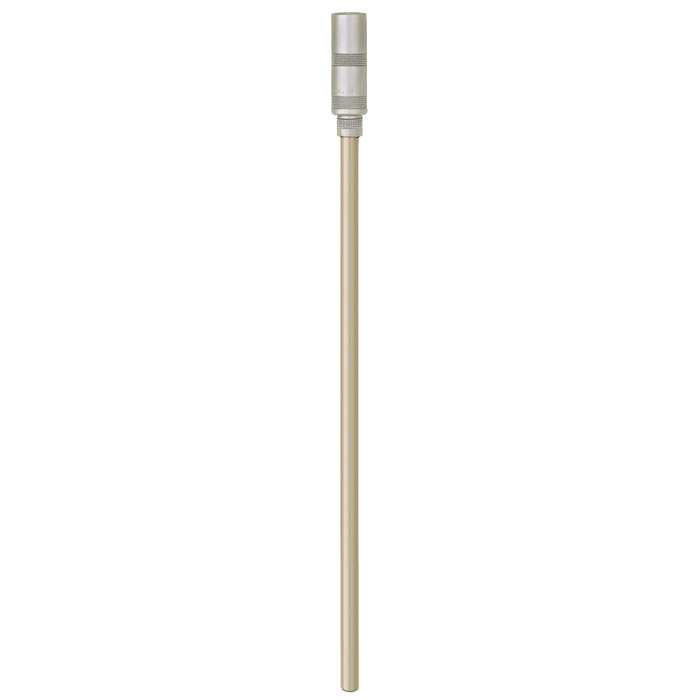

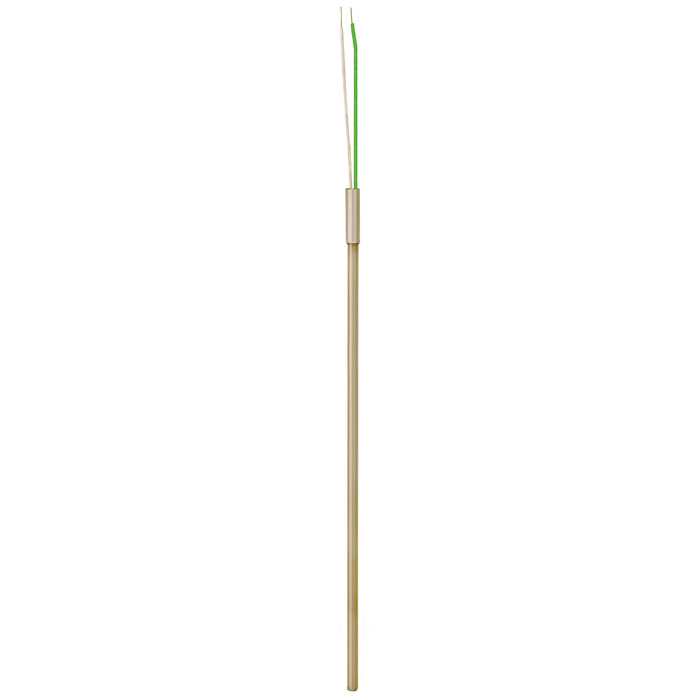

Cable thermocouple thermometers are particularly suitable for applications where metal probes are assembled into drilled holes (such as mechanical parts) or measurement processes (ie for all applications without chemically aggressive media and without wear) ).
To install the thermometer into the jacket, you need to use a flexible ferrule fitting to press the probe into the bottom of the sheath. This ensures that the force applied to the probe does not exceed the critical value.
Standard thermocouple thermometers do not have process connections, but can also be connected using fasteners such as threaded joints, movable nuts, etc.
