Apps
Equipment Construction
Experimental Platform
Level measurement
General Industrial Applications

Features
Applies to 4 ... 20 mA current loop
Min/Max Memory
Up to 10 points linear calibration
2 potentialless switch electrical contacts (optional)
Minimum installation depth: 25 mm, without plug-in terminal

Description
The DI10 digital display has a shallow installation depth and is ideal for applications where space is limited. Due to its shallow depth of insertion, it can be used in applications where large volume digital displays cannot be used.
Digital display supports 4… 20 mA current loop signal in accordance with industry standards. The display is powered directly from the current loop and requires no additional power.
Digital display menu structure design is reasonable, so that users can very intuitively set the parameters of the display. The settings can be made using the front control buttons.
The display range and offset can be set by parameter settings.
In addition, the sensor signal can be linearly calibrated by up to 10 points. The display time is between 0.1 and 10 seconds. To prevent operator accidental operation in the menu system, the program lock function can also be activated.
The minimum/maximum value can be easily recalled by the control buttons.
can choose 2 PhotoMOS output, and the hysteresis of the two outputs can be adjusted independently, without affecting each other.

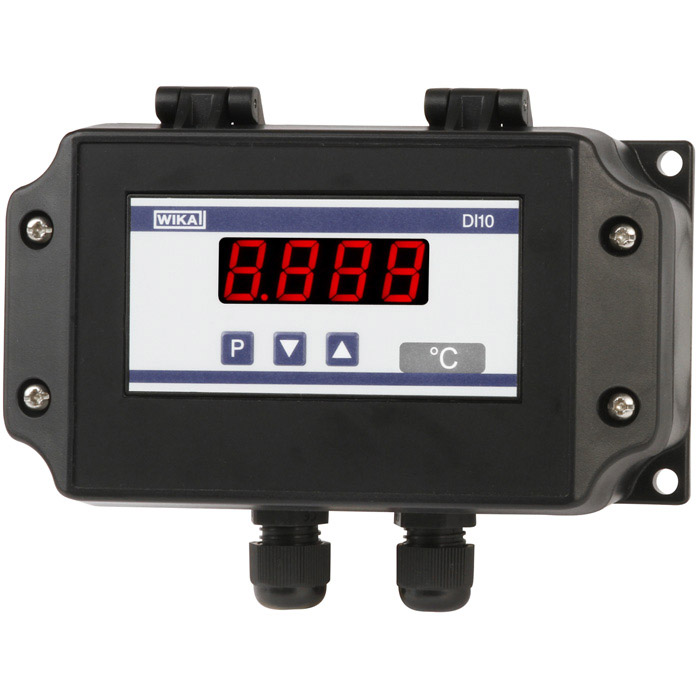

Using an IP 65 degree of protection wall mount, the digital display can be easily mounted outside the electrical panel.
