Apps
Chemical and petrochemical industry
Oil & Gas Industry
Power Engineering, Renewable Energy
Machinery Manufacturing and Equipment Construction

Features
One meter dual-use, economical temperature measuring instrument
Compact design
Application range: -200 ...+700 °C
"Plug and Play", no need to configure the transmitter

Description

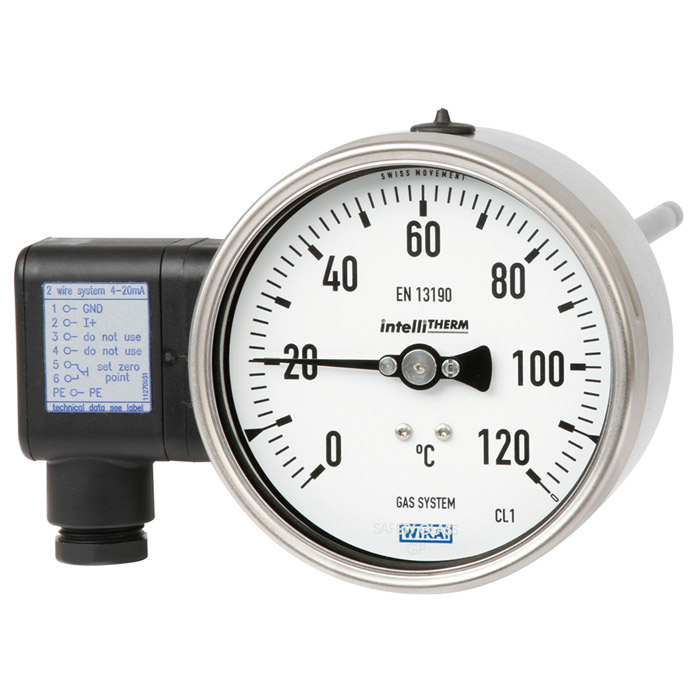

At any time, if you want to pass the signal to the central controller or remote control room while displaying the process pressure locally, the TGT73 intelliTHERM® thermometer will be ideal.
This model combines a mechanical measurement system with sophisticated electrical signal processing to allow the operator to safely read process temperatures even in the event of a power outage.
With a range of optional configurations, the TGT73 airbag thermometer can be adapted to different process interfaces and installation locations.

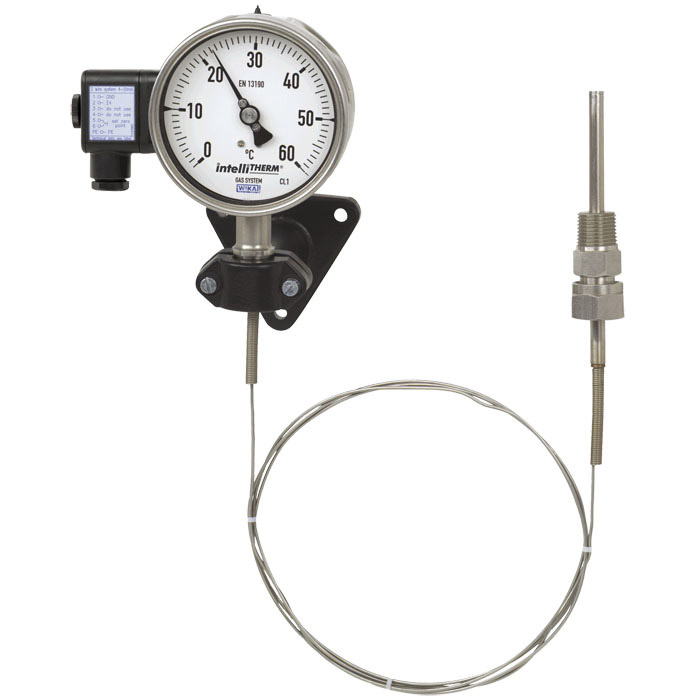

This model has a self-adjusting probe and dial for easy reading. In addition, we offer models with contact tubes that measure temperature at very small diameters without touching the media.
This model incorporates a WIKA electronic transmitter in a high-quality mechanical temperature measuring instrument that combines the transmission of electronic signals with the advantages of local mechanical display.
Measurement range (electrical signal output) can be automatically set according to the mechanical display, the electrical signal output range of the instrument at full scale is 4 ... 20 mA.
