Application of Venturi Tubes
Power Generation
Petroleum Refining & Refining
Water Treatment and Distribution System
Gas Handling and Transportation
Chemical and petrochemical industry

Functional characteristics of venturi
Applicable to liquid, gas and steam flow measurement
Precision ≤ ±0.5 %
Measure repeatability is 0.1 %
This model has the least pressure loss compared to other primary flow components
can be calibrated according to customer requirements

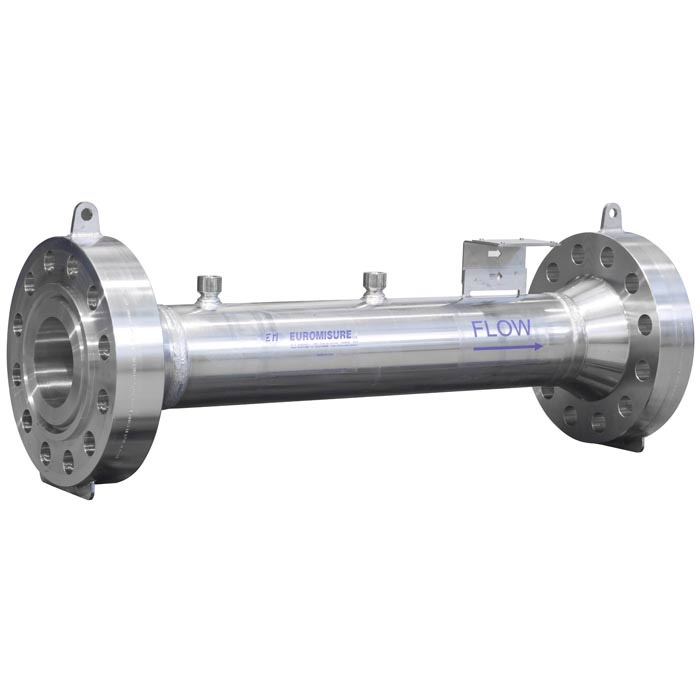

Description of Venturi Tube
Higher pressure recovery, lower upstream and downstream piping requirements
Venturi is a reliable, easy to manage and maintain instrument that measures a wide range of cleaning fluids and gases.
The main advantages of venturi pipes relative to other differential pressure flow meters are higher pressure recovery and lower upstream and downstream straight pipe length requirements.
In the upstream pipeline, the venturi tube consists of a shrink nozzle to increase the flow rate of the medium in the pipeline. The downstream pipe is a diffusing section that restores the medium pressure to its original state.
Low differential pressure flow monitoring
The venturi can maintain the output pressure to a large extent, so it is especially suitable for flow measurement in low dropout systems.
Minimize the pumping cost of fluids due to less pressure loss.
