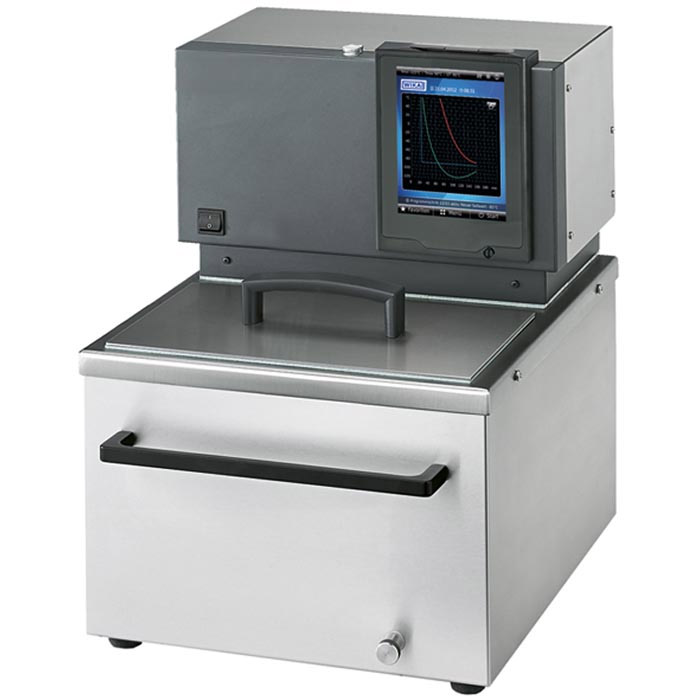

 Constant temperature oil tank (heating / cooling oil tank), CTB9500 |
 Heating oil tank, CTB9400 |
Application of constant temperature oil tanks
Calibration applications for laboratories, control workshops, and instrumentation test shops
Calibration of short temperature sensors in the pharmaceutical and food industries
Simultaneous calibration of multiple sensors
Features of constant temperature oil tanks
Controller with 5.7" color touch screen and menu navigation in 11 different languages
2 USB (master, slave) interfaces, Ethernet and RS-232 interface
Control temperature accurately and reliably
5-point calibration of control sensors (optional)
Description of a constant temperature oil tank
Calibration in a constant temperature oil tank
Weika thermostat tank is the ideal temperature source for calibrating temperature probes in the workshop and laboratory.
When calibrating, the device under test and the standard thermometer are at the same temperature in the constant temperature oil bath. Once the temperature has stabilized, the system reads the temperature of the device under test or measures the output signal of the device under test, and then compares the reading with the measured value of the standard thermometer.
In order to achieve smaller measurement uncertainty during comparison, a constant temperature unit is required to achieve a uniform spatial temperature distribution and achieve a constant temperature over the calibration temperature range. The constant temperature oil sump can fully meet these requirements.
In addition to the constant temperature oil tank itself, the liquid in the tank also plays an important role. In order to ensure a uniform temperature distribution, the selected liquid should have a high thermal conductivity and a low viscosity.
In addition, the liquid should also be inert, have a low vapor pressure, will not chemically decompose, will not burn and maintain its inherent properties over a wide temperature range.
In fact, silicone oil has long been recognized by everyone in this regard.
Temperature range: -45 … +300 °C
Thermal oil tank is available in two models:
CTB9400 temperature range: 28 ... 300 ° C
CTB9500 temperature range: -45 ... +200 °C
This equipment is mainly used in the calibration laboratory, control workshop and instrument test shop to calibrate the thermometer.
Easy to use
The constant temperature oil sump has an incubator with a depth of 200 mm. The maximum immersion depth of the device under test is 200 mm, which reduces the heat conduction error and reduces the measurement uncertainty.
