 Hand pump, CPP1000-M |
 Portable hand pump, CPP1000-L |
Apps
Calibration Services and Services
calibrate directly in the field
Maintenance and service facilities
can generate hydraulic pressure up to 100MPa (14,500psi)
Features
There is a precision spindle with smooth rotation installed in the pump body
Integrated oil tank
Removable Star Handle
Freely rotatable test connection (ie the user can freely adjust the direction of the instrument according to the application)
Precisely set the test pressure through the trim valve (optional model CPP1000-M)
Description
Apps
Test pump can be used to generate pressure, allowing users to test, adjust and verify mechanical and electronic pressure gauges through comparative measurements. These stress tests can be performed at the laboratory, on-site or on-site measurement points.
Easy to use

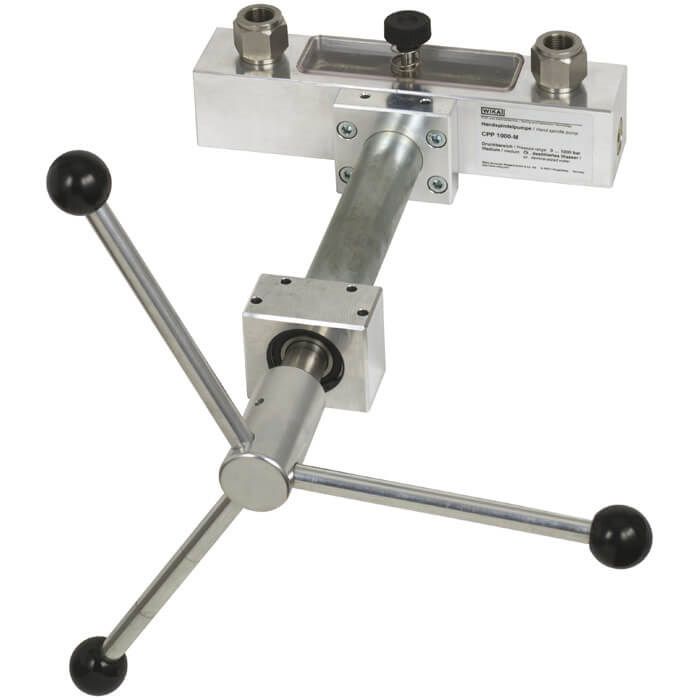

Model CPP1000-M and CPP1000-L handheld spindle pumps are mainly used to test and calibrate small volume pressure measuring instruments. Test items and reference instruments with a large volume should be pre-filled outside the test pump or simply and conveniently filled by a hand-held spindle pump using a shut-off valve that can be used as a test connection accessory.
CPP1000-L has a narrow rear flange, sealed reservoir and a built-in standard trim valve housing.
For the CPP1000-M, the trim valve can be used as an accessory and is one of the options for installation. The test connection is G½ female thread. The corresponding thread adapter can be used to calibrate instruments with different connection threads.
Calibration Services and Services
calibrate directly in the field
Maintenance and service facilities
can generate hydraulic pressure up to 100MPa (14,500psi)
Features
There is a precision spindle with smooth rotation installed in the pump body
Integrated oil tank
Removable Star Handle
Freely rotatable test connection (ie the user can freely adjust the direction of the instrument according to the application)
Precisely set the test pressure through the trim valve (optional model CPP1000-M)
Description
Apps
Test pump can be used to generate pressure, allowing users to test, adjust and verify mechanical and electronic pressure gauges through comparative measurements. These stress tests can be performed at the laboratory, on-site or on-site measurement points.
Easy to use
Model CPP1000-M and CPP1000-L handheld spindle pumps are mainly used to test and calibrate small volume pressure measuring instruments. Test items and reference instruments with a large volume should be pre-filled outside the test pump or simply and conveniently filled by a hand-held spindle pump using a shut-off valve that can be used as a test connection accessory.
CPP1000-L has a narrow rear flange, sealed reservoir and a built-in standard trim valve housing.
For the CPP1000-M, the trim valve can be used as an accessory and is one of the options for installation. The test connection is G½ female thread. The corresponding thread adapter can be used to calibrate instruments with different connection threads.
